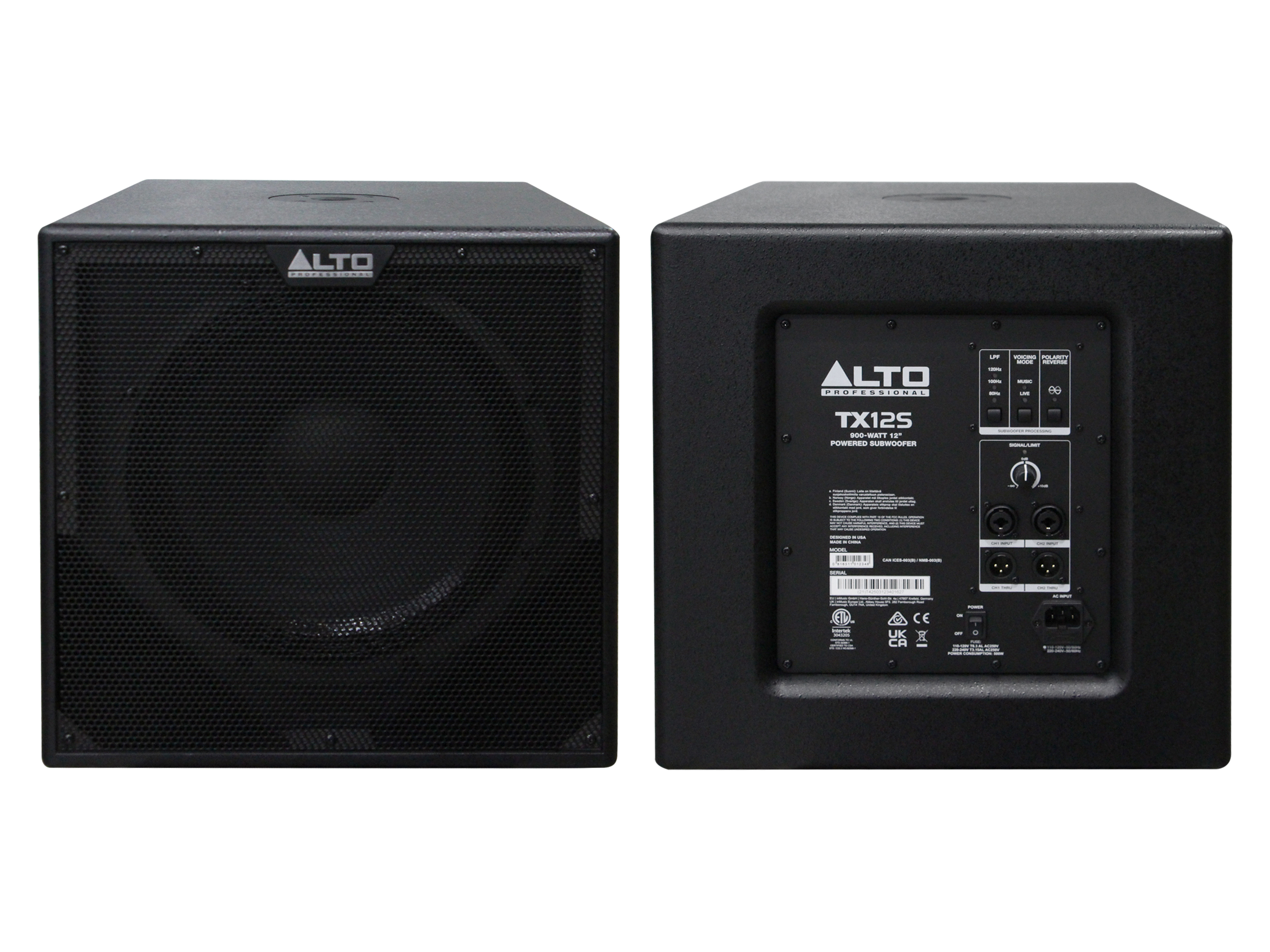

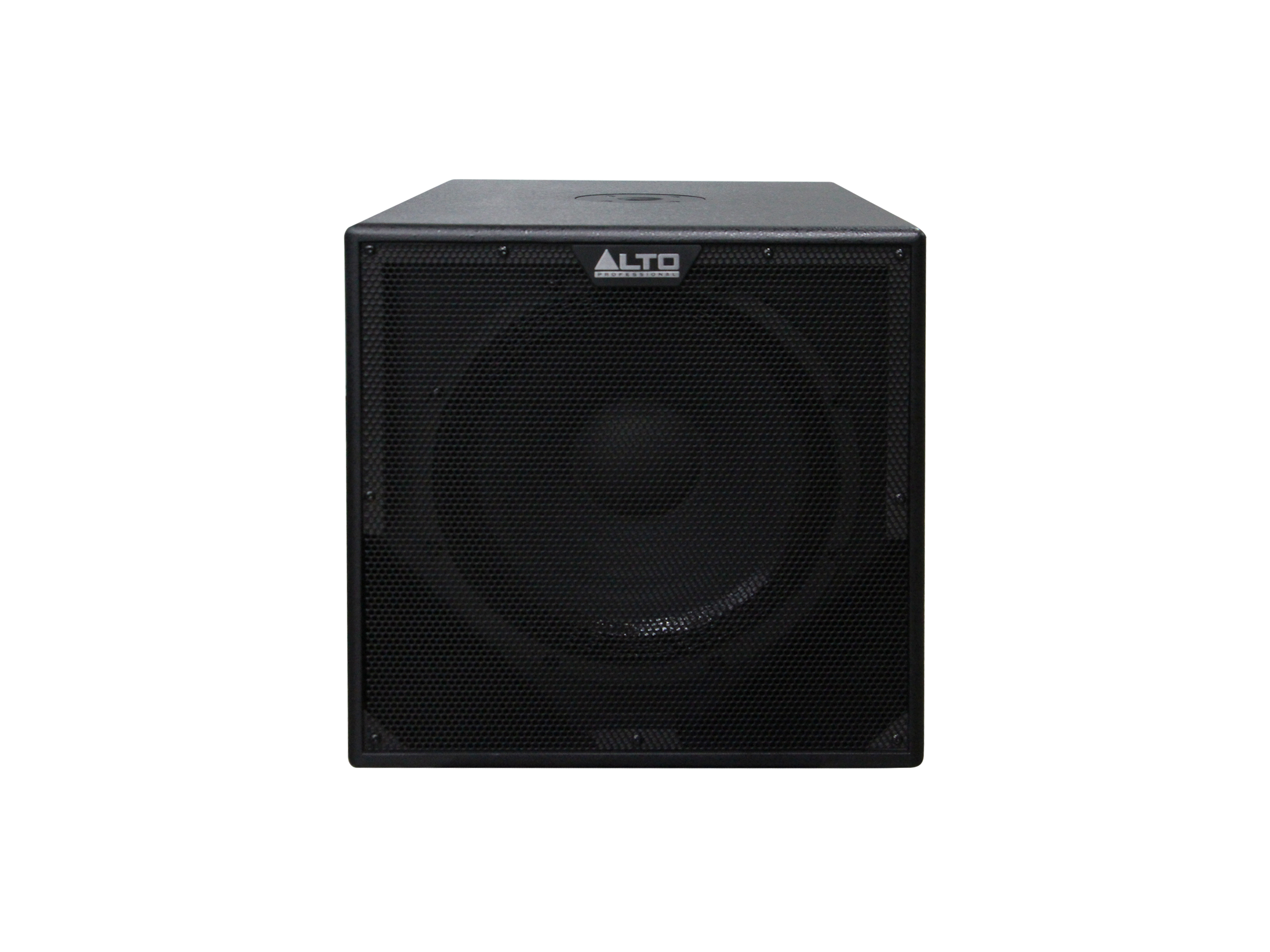

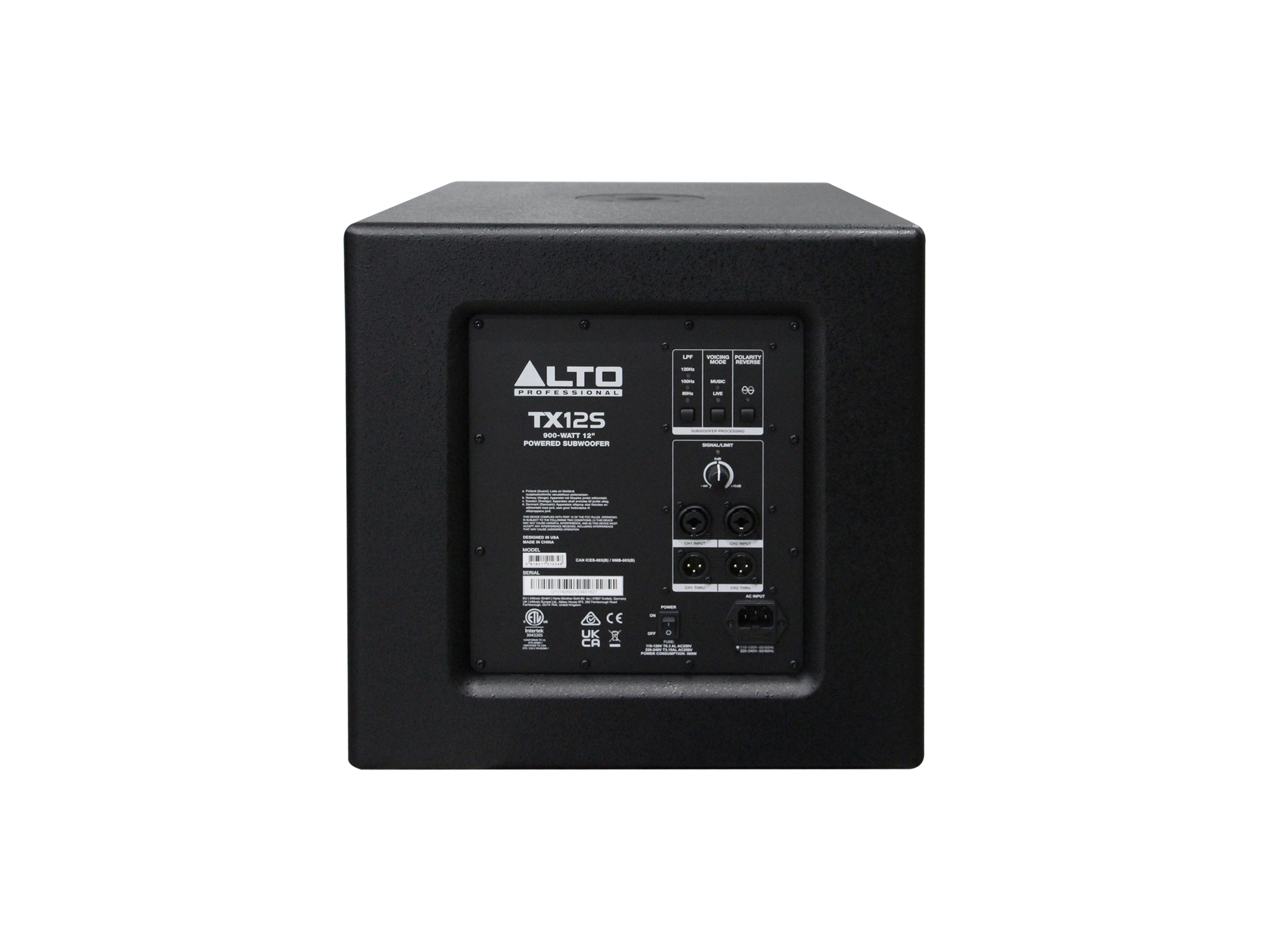

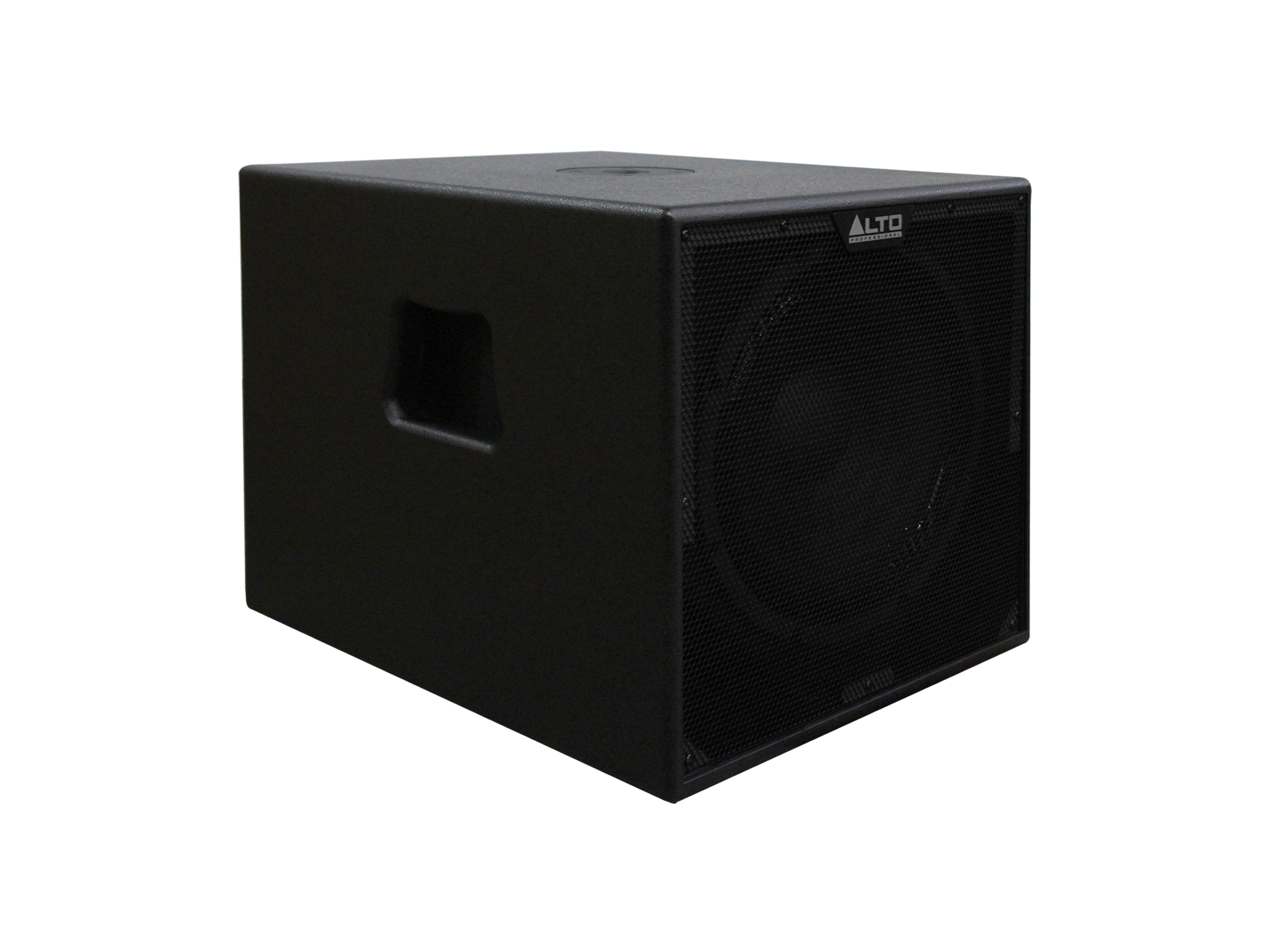

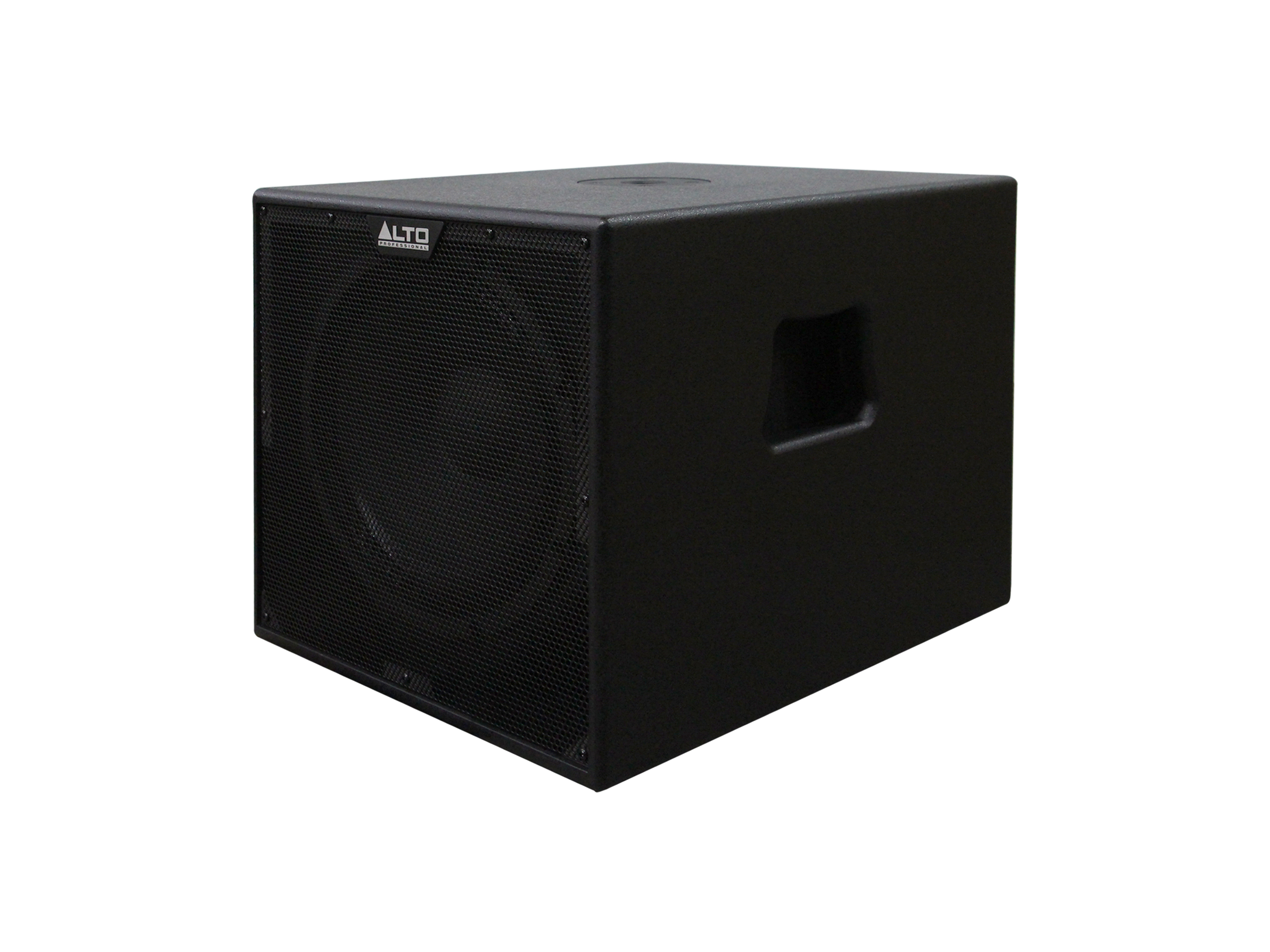

SYSTEM : 12" Active Subwoofer ; FREQ : 46 Hz - 115 Hz (-3dB)
OUTPUT : 450Wrms / 900Wpeak ; Class D ; MAX SPL (1W/1m) : 126dB
FUNCTION : 2 XLR Combo In, 2 XLR Out , HPF 80Hz / 100Hz / 120Hz, Polarity, Mode Voicing
TRANSDUCERS : Low 12" VC 51 mm / 2"
DIMENSIONS (WxDxH) : 405 x 405 x 510 mm ; N.W : 22.4 kg / 49.4(LBS.)

LINE INPUT CH_1 / CH_2
- Connector : XLR/TRS combo input connector (line is TRS only)
- Dynamic Range : 108 dB (A-weighted)
- THD +N (%, -1 dBFS input) : <0.01%
- Maximum Input Level : +16 dBu
- Gain Range : 24 dB
- Frequency Response : 20 Hz - 20 kHz (+/- 0.1 dB)
- Input Impedance : 20k Ohm
CH_1 / CH_2 THRU
- Connector : XLR output connector
- Frequency Response : 20 Hz - 20k Hz (+/- 0.1 dB)
- Output Level (for 0.5% THD) : Fixed +10 dBu
- Input Impedance (unbalanced) : 100 Ohm
GENERAL
- Output Power : 900 watts (peak), Class D power
- Frequency Response : 46 Hz - 115 Hz (-3dB)
- Maximum SPL : 126 dB
- Low Frequency Driver : 12.0" (305 mm) woofer / 2.0" (51 mm) voice coil
- User Low Pass Filter : 80 Hz, 100 Hz, 120 Hz (24 dB per octave)
- Low Frequency Extension : HPF 50 Hz (default) and 45 Hz (extension on)
- Polarity : 180 degree phase inversion
- Enclosure : Internally braced MDF cabinet, splatter spray finish, metal grille
- Mounting : 36 mm pole socket
- Power : Connection : Standard IEC cable
: Input Voltage : 100-120, 50/60 Hz ; 220-240 VAC 50/60 Hz
: Consumption : 500 W
: Fuse : 110-120V T6.3 AL AC250V; 220-240V T3.15AL AC250V
- Dimensions (HxWxD) : 510 x 405 x 405 mm
- Weight : 49.3 lbs / 22.4 kg
